2025 Ford Maverick Dimensions: Interior, Exterior & Truck Bed Size Guide
2025 Ford Maverick Dimensions: Smart Truck Bed Design, Big Utility, and a Spacious Inside
The Ford Maverick might be compact, but don’t let its size fool you—the Maverick dimensions pack punches well above its weight class.
For 2025, Ford’s smallest truck continues to blend urban-friendly maneuverability with rugged practicality, making it one of the most versatile options on the road. Whether squeezing into tight city parking spots or hauling gear for a weekend adventure, the Maverick offers an impressive balance of capability, efficiency, and comfort.
Size matters, especially when shopping for a truck that has to work as hard as it plays. From exterior dimensions to cabin space and, most importantly, the Maverick’s truck bed, knowing the numbers can help you figure out whether the Maverick fits your lifestyle—or if you need to size up.
Wondering how the Ford Maverick Truck Bed Size compares to other compact pickups? Or if it’s big enough for your hauling needs? We break down all the key measurements so you can decide if this powerhouse-in-a-small-package is the right fit for your lifestyle.
2025 Ford Maverick Exterior Measurements:
Compact Size, Big Capability
| Specification | 2.5L FWD | 2.0L AWD | Tremor AWD | Lobo AWD |
|---|---|---|---|---|
| Wheelbase | 121.1 | 121.1 | 121.1 | 121.1 |
| Vehicle Length | 199.8 | 199.8 | 200.6 | 200.9 |
| Vehicle Height – Maximum | 68.8 | 68.5 | 69.4 | 67.7 |
| Vehicle Width | 72.6 | 72.6 | 72.6 | 72.6 |
| Body Width – Maximum | 72.4 | 72.4 | 72.4 | 72.4 |
| Vehicle Width – Including Outside Mirrors | 83.5 | 83.5 | 83.5 | 83.5 |
| Vehicle Width – with Mirrors Folded | 77.9 | 77.9 | 77.9 | 77.9 |
| Vehicle Track Front Curb | 63.6 | 63.5 | 63.1 | 63.7 |
| Vehicle Track Rear Curb | 63.0 | 62.6 | 62.4 | 63.1 |
| Front Overhang | 34.2 | 34.2 | 34.4 | 34.7 |
| Rear Overhang | 44.5 | 44.5 | 45.1 | 45.0 |
| Approach Angle (°) | 20.3 | 21.1 | 30.8 | 19.0 |
| Departure Angle (°) | 22.2 | 21.1 | 21.6 | 19.3 |
| Ramp Breakover Angle – Curb (°) | 16.7 | 18.3 | 20.1 | 17.0 |
| Minimum Running Ground Clearance | 8.1 | 8.3 | 9.1 | 7.4 |
| Front of Bumper to Back of Cab | 137.7 | 137.7 | 138.0 | 138.2 |
Small trucks don’t always get the credit they deserve, but the 2025 Ford Maverick proves that a compact footprint doesn’t mean compromising on utility. Whether tackling tight urban streets or heading off-road, the Maverick’s dimensions strike a near-perfect balance between maneuverability and rugged capability—making it an ideal choice for drivers who need truck functionality without the oversized bulk.
At the heart of the Maverick’s design is its 121.1-inch wheelbase, delivering stable handling across all trims. The truck’s overall length varies slightly, with the 2.5L FWD and 2.0L AWD models stretching to 199.8 inches, while the off-road-ready Tremor edges up to 200.6 inches, and the sport-tuned Lobo AWD tops out at 200.9 inches. The extra length? It’s all about optimizing overhangs for better ground clearance and aerodynamics, depending on the trim’s purpose.
Speaking of stance, the Maverick’s height shifts between 68.8 inches (FWD Hybrid) and 69.4 inches (Tremor AWD) for those looking for more off-road clearance. The Lobo AWD sits the lowest at 67.7 inches, lending it a more aggressive, street-focused presence.
In terms of width, the Maverick stays consistent: 72.4 inches across all trims, with a max width of 83.5 inches including mirrors. Fold those mirrors in, and you’re looking at 77.9 inches, making tight parking jobs far less stressful.
For off-road enthusiasts, the Tremor AWD is where things get serious, boasting a 30.8-degree approach angle and 20.1-degree breakover angle, thanks to its 9.1 inches of ground clearance. Compare that to the base 2.5L FWD Hybrid at 8.1 inches or the street-oriented Lobo at 7.4 inches, and you can see how Ford tailored each trim for different missions.
From front bumper to back of cab, dimensions range from 137.7 inches on the base trims to 138.2 inches on the Lobo, underscoring subtle differences in styling and utility across the lineup.
Bottom line? The Maverick is compact, but it’s built to do more than city commuting—it’s a true multi-purpose hauler with a footprint that works in the real world.
2025 Ford Maverick Truck Bed Measurements:
How the Maverick Truck Bed Measures Up
| Specification | Measurement |
|---|---|
| Bed Length | 54.4 inches |
| Bed Width (Max) | 53.3 inches |
| Width (Between Wheel Wells) | 42.6 inches |
| Bed Depth | 20.3 inches |
| Bed Volume | 33.3 cubic feet |
| Ground to Bed Floor | 28.2 - 30.4 inches |

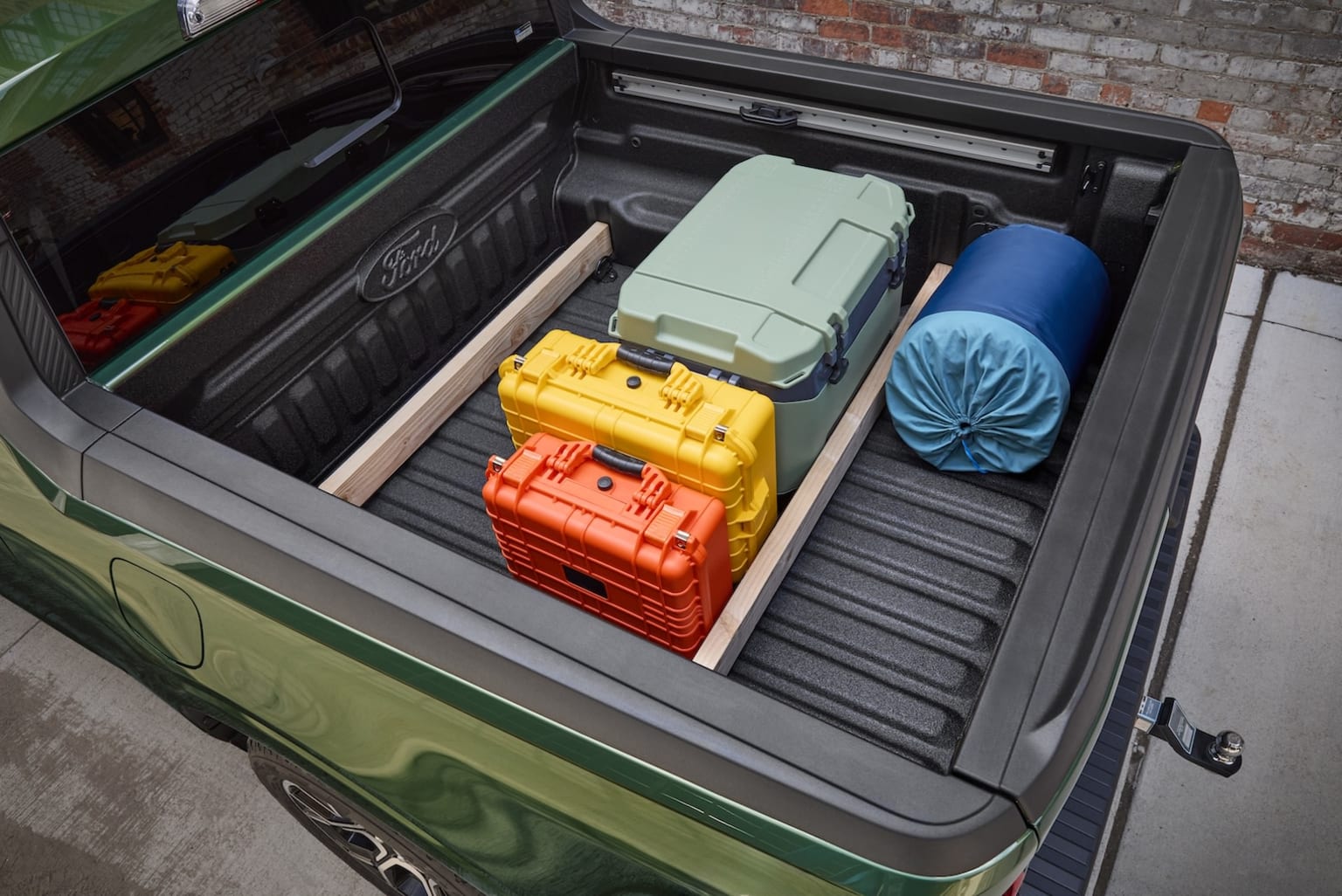

If there’s one thing truck buyers look for, it’s utility—and the 2025 Ford Maverick Truck Bed Size delivers exactly that, packed into a compact, highly functional package. Whether it’s hauling tools, loading up gear for a weekend getaway, or handling daily tasks, the Maverick’s FLEXBED® system makes the most of every inch.
So, what is the bed size on the 2025 Ford Maverick? Measuring 54.4 inches long, this cargo space proves that you don’t need a full-size truck to get serious hauling done. Width maxes out at 53.3 inches, providing plenty of room for toolboxes, coolers, and bulky equipment. Even between the wheel wells, you still get 42.6 inches of usable width, ensuring functional storage space where it counts.
Need vertical space? The Maverick’s 20.3-inch bed depth makes stacking cargo easy while keeping it secure under the bed rails. With a total bed volume of 33.3 cubic feet, this compact pickup punches above its weight class when it comes to usable cargo capacity.
Ford also kept accessibility in mind. A low bed floor height—ranging from 28.2 to 30.4 inches, depending on the trim—makes loading and unloading far easier than with larger trucks.
And, of course, functionality reigns supreme. The FLEXBED® system offers custom storage solutions, built-in dividers, adjustable tie-downs, and available 12V and 110V power outlets, giving this compact truck real versatility for work or play.
Bottom line? The Ford Maverick Truck Bed Size is designed for drivers who demand practical utility without the bulk. It’s compact, efficient, and packed with smart features—proof that even smaller trucks can bring serious capability to the table.
2025 Ford Interior Measurements:
Passenger Space
| Specification | 2.5L FWD | 2.0L AWD | Tremor AWD | Lobo AWD |
|---|---|---|---|---|
| Effective Head Room – Front | 40.2 | 40.2 | 40.2 | 40.2 |
| Effective Head Room – Front (with moonroof) | 38.0 | 38.0 | 38.0 | 38.0 |
| Effective Head Room – Second | 39.6 | 39.6 | 39.6 | 39.6 |
| Effective Head Room – Second (with moonroof) | 39.4 | 39.4 | 39.4 | 39.4 |
| Maximum Leg Room – Accelerator | 42.8 | 42.8 | 42.8 | 42.8 |
| Effective Leg Room – Second | 35.9 | 36.9 | 36.9 | 36.9 |
| Hip Room – Front | 55.4 | 55.4 | 55.4 | 55.4 |
| Hip Room – Second | 54.1 | 54.1 | 54.1 | 54.1 |
| Shoulder Room – Front | 57.3 | 57.3 | 57.3 | 57.3 |
| Shoulder Room Beltline – Second | 55.6 | 55.6 | 55.6 | 55.6 |
| Passenger Volume Total | 100.3 | 101.5 | 101.5 | 101.5 |
Surprisingly Roomy for a Compact Pickup
Ford’s smallest truck isn’t just about efficiency—it’s also cleverly designed to make every inch of cabin space count. Whether you’re commuting in the fuel-sipping 2.5L FWD hybrid or hitting the trails in the Tremor AWD, the 2025 Ford Maverick delivers a well-thought-out interior that punches above its weight class in comfort and practicality.
Headroom: No Cramped Feeling Here
Despite the Maverick’s compact footprint, headroom is generous. Up front, 40.2 inches provide plenty of space for taller drivers. Opt for the available moonroof, and headroom drops slightly to 38.0 inches, but remains accommodating. Backseat passengers won’t feel squeezed either, with 39.6 inches of headroom (or 39.4 inches with the moonroof).
Legroom: Stretched-Out Comfort
Legroom is another strong suit. Drivers and front passengers get a spacious 42.8 inches, while the rear row ranges from 36.9 inches in the AWD trims to 35.9 inches in the base FWD model—both solid numbers for the compact truck category.
Hip and Shoulder Room: Built for Real-World Seating
The Maverick’s interior stays surprisingly roomy for a small pickup. Front hip room lands at 55.4 inches, while rear hip room comes in at 54.1 inches—enough for three passengers in the back without feeling squeezed. Front shoulder room maxes out at 57.3 inches, with 55.6 inches in the rear, keeping the cabin comfortable for longer drives.
Total Passenger Space: Practical Without the Bulk
Depending on trim, total passenger volume ranges from 100.3 cubic feet in the base trim to 101.5 cubic feet in AWD models. While the difference is subtle, it highlights Ford’s smart interior layout and minor refinements that make upper trims even more comfortable.
Bottom Line? The 2025 Ford Maverick proves that compact pickups don’t have to feel cramped. With thoughtful dimensions, solid legroom, and enough space to keep both rows comfortable, this truck delivers utility without sacrificing passenger comfort.
Packing Up The 2025 Ford Maverick
Why the 2025 Ford Maverick’s Truck Bed Size Makes It a Smart, Versatile Choice
Compact pickups don’t always get the recognition they deserve, but the 2025 Ford Maverick proves that size isn’t everything. Its truck bed may be smaller than a full-size workhorse, but it’s packed with practicality and smart design, making it one of the most versatile options in its class.
Need a truck that fits seamlessly into urban life but still hauls with confidence? The Ford Maverick Truck Bed Size strikes the perfect balance—maneuverable, efficient, and built for real-world utility. Whether you’re loading up gear for the weekend or tackling daily chores, the Maverick delivers capability without compromise.
The Maverick proves that sometimes less is more—especially when every inch is engineered for maximum usability.
